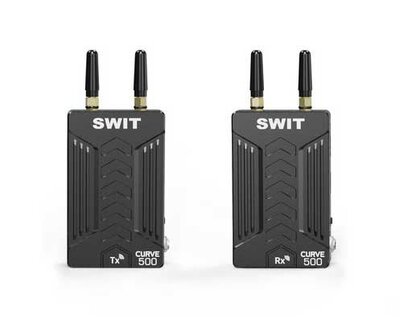

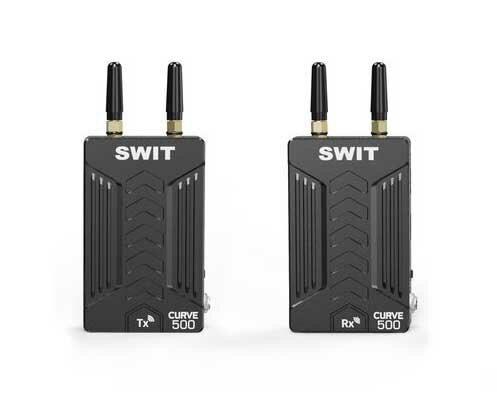

Swit CURVE500 HDMI 150m/500ft Wireless Transmission System

Swit CURVE500 HDMI 150m/500ft Wireless Transmission System

Designed for DSLR or mirrorless HDMI cameras, the new CURVE500 transmits HDMI over 500ft/150m distance wirelessly, up to 1080p60 formats

€ 527,00

excl. btw

€ 637,67

incl. btw

Prijs per stuk

Aantal:

Bestellen

Op verlanglijst

Heeft u een vraag over dit product?

Stel ons uw vraag

Mail 074-2504909

Omschrijving

CURVE500 supports stable connection at any complex environment and has stronger wall-cross capability.
It's 5GHz lisence-free wireless frequency, and DFS comply, CE/FCC certificated.

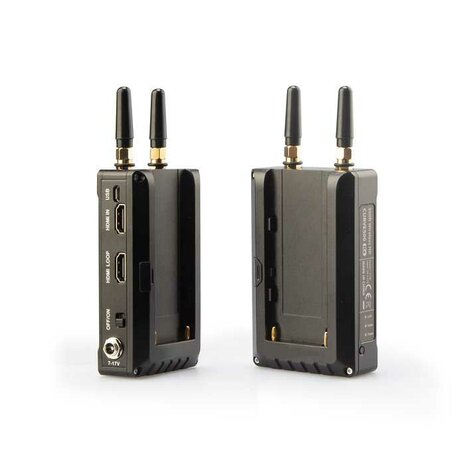

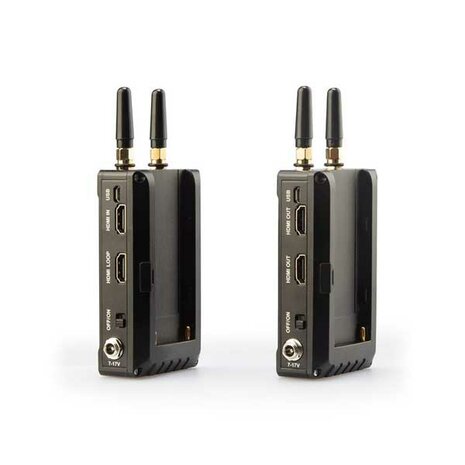

The Transmitter has HDMI input and HDMI loop out for camera monitor and the Receiver has 2x HDMI outputs.

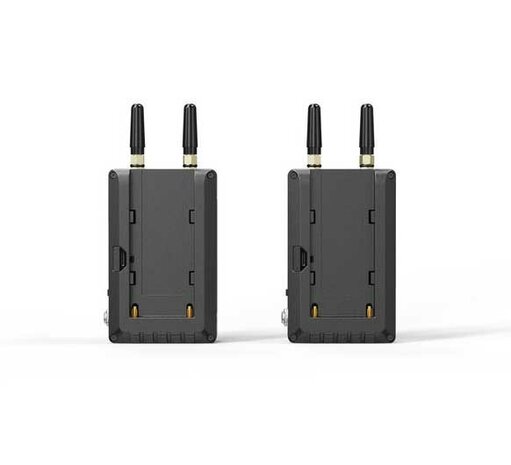

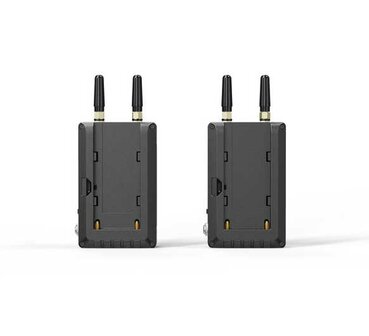

Both Transmitter and Receiver have NP-F plate built-in, and support 7-17V DC-IN socket. Aluminium housing, light weight.

Input / Output

Transmitter	HDMI 1.3 input ×1
	HDMI 1.3 loop output ×1
Receiver	HDMI 1.3 output ×2

Video Formats

HDMI	1080p60, 1080p59.94, 1080p50
	1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30;
	1080psf23.98, 1080psf24
	1080i60, 1080i59.94, 1080i50;
	720p60, 720p59.94, 720p50

Wireless

Frequency	5.17GHz-5.69GHz and 5.75GHz-5.83GHz
RF Modules	OFDM 16QAM, 64QAM, QPSK, BPSK
RF Power	50mW
Transmission Distance	500 feet / 150 meters (Line of sight)

General

Input voltage	Transmitter DC 7-17V Receiver DC 7-17V
Power Consumption	Transmitter 7.5W Receiver 7W
Dimension(w/o antenna)	Transmitter 114.18×69.55×28 (mm) Receiver 114.18×69.55×28 (mm)
Net weight	Transmitter 198.6g Receiver 201g; With package 1.05kg
Working Temperature	0°C -+40°C
