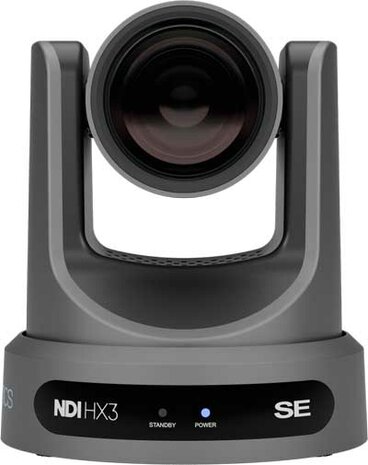

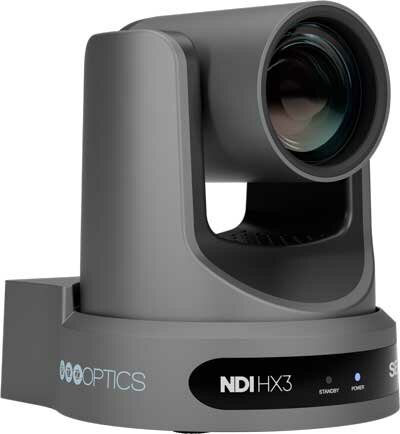

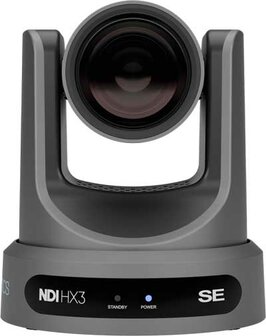

The PTZOptics Move SE 12X is an advanced PTZ camera designed for a wide range of professional video production environments. This camera provides full 1080p HD resolution at 60fps, delivering exceptional clarity and detail for live streaming, events, and video production. Featuring built-in auto-tracking with Presenter Lock™ technology, the Move SE 12X is capable of automatically following a presenter, ensuring a smooth, hands-free production. With its versatile 12X optical zoom and native NDI® support, this camera is ideal for seamlessly integrating into modern IP-based production setups.
At an accessible price point starting at just $999, the PTZOptics Move SE 12X offers PoE (Power over Ethernet) capabilities, simplifying installation and reducing the need for multiple cables. Whether used in classrooms, meeting spaces, or large-scale events, the Move SE 12X offers a compact and discreet design that is easy to mount in a variety of positions. This camera ensures that users can achieve professional-level production quality without the need for a dedicated camera operator, thanks to its robust auto-tracking and flexible control options.
With its range of outputs, including HDMI, SDI, USB, and IP, as well as compatibility with major video production software, the Move SE 12X provides everything you need for high-quality, seamless broadcasting. Whether you are streaming to platforms like Facebook or YouTube or integrating it into a local production network, this camera offers all the features you need for efficient and reliable video production.
Features and Benefits:
- Built-in auto-tracking with Presenter Lock™ technology
- Native NDI® support for easy IP-based integration
- Up to 1080p resolution at 60fps for high-quality video production
- 12X optical zoom for detailed, high-quality shots from a distance
- PoE support for easy power and control through a single Ethernet cable
- Multiple video outputs: HDMI, SDI, USB 2.0, and Ethernet for flexibility
- Wide dynamic range for high-quality video in various lighting conditions
- Wide compatibility with software such as OBS, vMix, Wirecast, Livestream Studio, and more
- 255 preset positions for easy camera configuration
- 2D & 3D noise reduction for enhanced image quality
- Automatic video inversion for flexible mounting options
- IR remote control for easy operation from any angle
- 5-year parts and labor warranty for peace of mind
Technical Specifications:
- Image Sensor: 1/2.8’’ Sony CMOS, Effective Pixels: 2.07M
- Lens (12X): f = 4.1mm ~ 49.2mm, F1.8 ~ F2.68
- Resolution and Frame Rate:
- HDMI: 1920x1080p-60/59.94/50/30/29.97/25, 1280x720p-60/59.94
- 3G-SDI: 1920x1080p-60/59.94/50/30/29.97/25, 1280x720p-60/59.94
- Digital Zoom: Off (1920x1080), 2X (960x540), 3X (640x360), 4X (480x270), 8X (240x135), 16X (128x72)
- Field of View (12X):
- Horizontal: 6.9° (tele) ~ 72.5° (wide)
- Vertical: 3.9° (tele) ~ 44.8° (wide)
- Display Field of View: 85.2°
- Min. Lux: 0.5 Lux @ (F1.8, AGC ON)
- Shutter Speed: 1/30s ~ 1/10000s
- Pan/Tilt Movement:
- Pan: ±170°
- Pan Speed: 1.7° ~ 100°/s
- Tilt: +90° to -30°
- Tilt Speed: 1.7° ~ 69.9°
- Presets: 255 Presets
- Power Supply: DC 12V / PoE (802.3af)
- Power Consumption: 2A (Max)
- Weight: 3.2 lbs (1.45 kg)
- Dimensions: 5.6" W x 6.7" D x 6.5" H (7.88" H with tilt up)
- Operating Temperature: 14°F ~ 104°F (-10°C to 40°C)
- Storage Temperature: -40°F ~ 140°F (-40°C to 60°C)

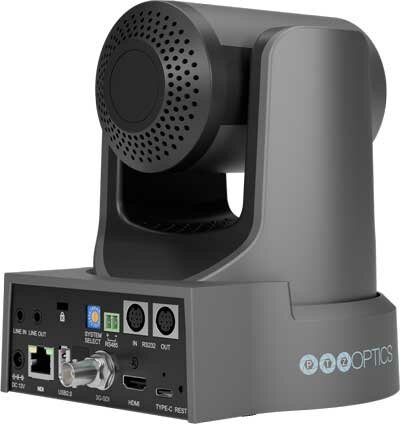

Rear Board Connectors:
- HD Video Output:
- 1x RJ45: 10/100 Adaptive Ethernet Port (PoE)
- 1x HDMI: Version 1.3
- 1x 3G-SDI: BNC type, 800mVP-p, 75Ω, SMPTE 424M standard
- 1x USB 3.0: Type C
- Audio Interface:
- 1x 3.5mm Line Level Input
- Communication Interface:
- 1x 8-pin Mini-Din RS232 input, Max distance 98.5ft (30m), protocol: VISCA / Pelco-D / Pelco-P
- 1x 8-pin Mini-Din RS232 output, Max distance 98.5ft (30m), protocol: VISCA / Pelco-D / Pelco-P
- 1x 2-pin Phoenix port RS485 input/output, Max distance 3937ft (1200m), protocol: VISCA / Pelco-D / Pelco-P
- IR Control: 4x IR addresses, max distance 30ft (9m)
- Network Interface: RJ45: 10/100M Adaptive Ethernet Port, supports PoE (802.3af)
Warranty:
- 5-Year parts and labor warranty
