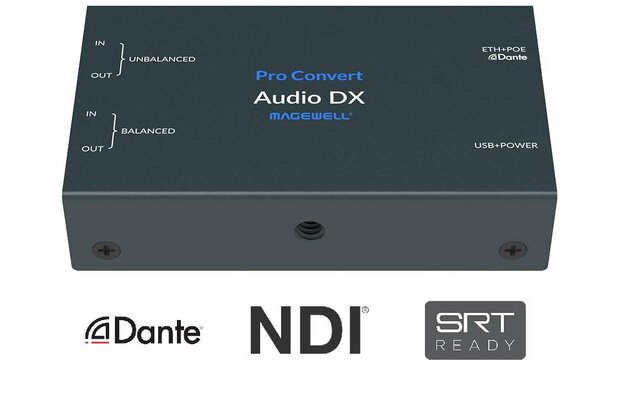

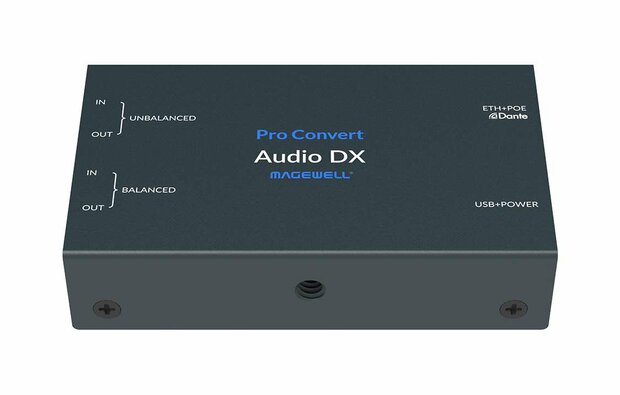

Magewell Pro Convert Audio DX

The Magewell Pro Convert Audio DX is a highly flexible IP audio conversion and capture device, allowing you to easily convert audio between Dante®, NDI®, and SRT in multiple directions. It is the idea

€ 465,00

excl. btw

€ 562,65

incl. btw

Prijs per stuk

Aantal:

Bestellen

Op verlanglijst

Heeft u een vraag over dit product?

Stel ons uw vraag

Mail 074-2504909

Omschrijving

• Encode analog audio into Dante®, NDI®, and SRT.
• Decode IP audio streams into Dante®, NDI®, and SRT (analog output).
• Capture audio on your PC or Laptop via USB.

Encode, Decode, and Capture Audio in many ways

The Magewell Pro Convert Audio DX is capable of encoding analog audio into multiple formats and streaming protocols such as Dante®, NDI®, or SRT. Decode your IP audio streams into all of these formats and protocols for analog output. Capture and save audio streams with the Pro Convert Audio DX by connecting the device to your PC or laptop via USB. The UAC compatibility provides immediate recognition by popular video conferencing, streaming, and production software.

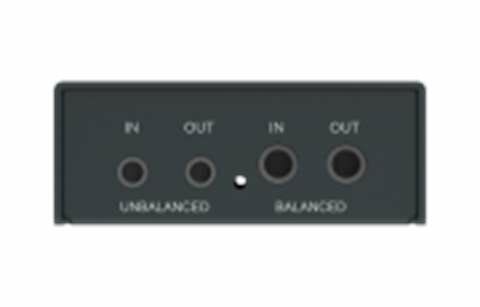

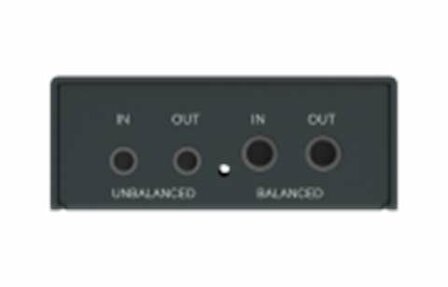

■ 3.5mm In&Out

1 x 2-channel 3.5mm TRS unbalanced in (5k Ohm)
1 x 2-channel 3.5mm TRS unbalanced out (10 Ohm)

■ 4.4mm In&Out

1 x 2-channel 4.4mm TRRRS balanced in (20k Ohm)
1 x 2-channel 4.4mm TRRRS balanced out (150 Ohm)

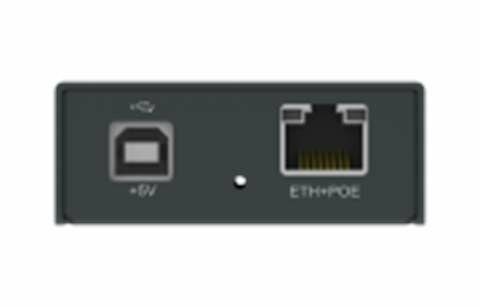

■ USB-B In&Out

1 x 4-channel 24-bit/48k USB Audio in and out

■ ETH In&Out

Receive and encode 24-bit 8 channels Dante® streams
Receive and encode 1 x 4-channel 16-bit NDI® audio stream
Receive and encode 1 x 4-channel 16-bit SRT audio stream

Mix and Route Audio

The Magewell Virtual Audio Matrix makes it very easy for users to route and mix any analog or IP-based input channel to any IP, analog, or UAC output. The Matrix can be accessed through the Web GUI and does not require software installation.

Specifications and Features

Input/Receiving Features

1 x 2-channel 3.5mm unbalanced in
1 x 2-channel 4.4mm balanced in
1 x 4-channel 24-bit/48k UAC in
Receiving 8-channel 24-bit Dante® streams in unicast or multicast
Receiving 1 x 4-channel 16-bit SRT/NDI® audio stream simultaneously

Output/Sending Features

1 x 2-channel 3.5mm unbalanced out
1 x 2-channel 4.4mm balanced out
1 x 4-channel 24-bit/48k UAC out
Encoding 8-channel 24-bit Dante® streams in unicast or multicast
Encoding 1 x 4-channel 16-bit audio for RTSP/SRT/NDI® audio stream simultaneously

Audio routing and mixing Features
