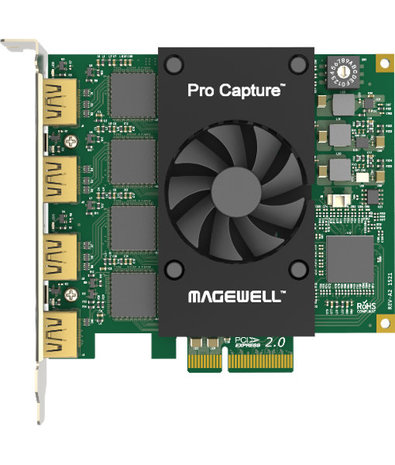

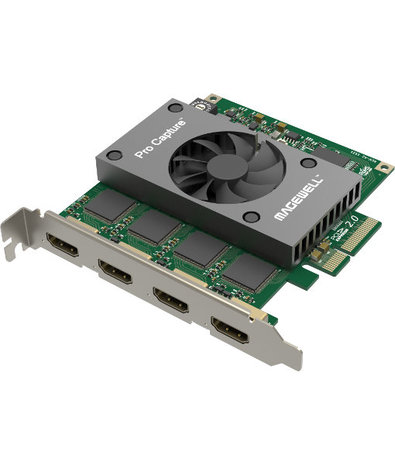

Magewell Pro Capture Quad HDMI

Magewell Pro Capture Quad HDMI Magewell Pro Capture Quad HDMI Magewell Pro Capture Quad HDMI
Magewell Pro Capture Quad HDMI Magewell Pro Capture Quad HDMI Magewell Pro Capture Quad HDMI
Magewell Pro Capture Quad HDMI
Ultra low latency 4 HDMI in capture kaart
€ 825,57
excl. btw
€ 998,94
incl. btw
Prijs per stuk
Aantal:
Bestellen

Op verlanglijst

Heeft u een vraag over dit product?

Stel ons uw vraag

Magewell capture kaarten onderscheiden zich door:

  • De magewell video engine met 4:4:4 10 bit RGB en YUV onderteuning.
  • hardware matige scaling, deinterlacing, cropping en beeldcorrecties.
  • universele drivers
  • ultra low latencyonder de 1 ms.
  • meerder kaarten in een systeem te gebruiken





Interface

Features:



Merk
Magewell
Overige
Technische Specificaties:




Supported OS

•Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64)
•Linux (V4L2 kernel driver source code under NDA, supports x86, x64 & arm architecture)
•OS X 10.9–10.11
•macOS 10.12



Supported APIs

•Windows◦DirectShow
◦DirectKS
◦Wave API/DirectSound/WASAPI

•Linux◦V4L2
◦ALSA




Supported Software

•VLC
•VirtualDub
•OBS
•xSplit
•vMix
•VidBlaster
•Wirecast
•Microsoft Media Encoder
•Adobe Flash Media Encoder
•Any other DirectShow/V4L2 encoding/streaming software

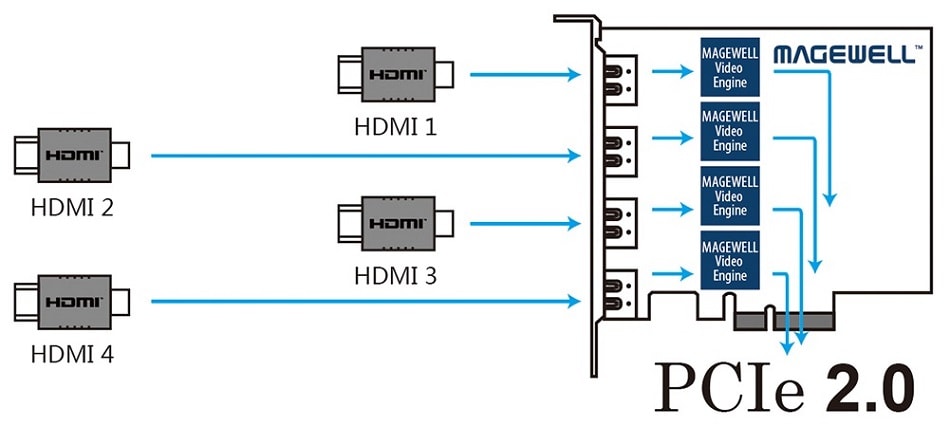

Input Interfaces

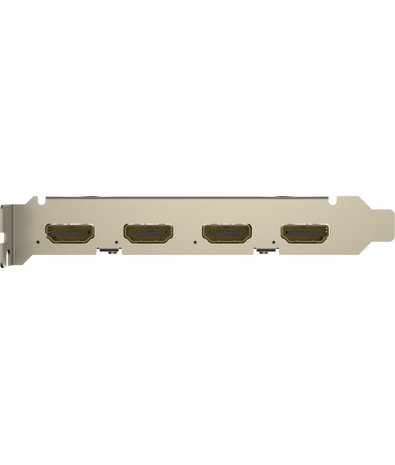

•4x HDMI type A◦DVI 1.0
◦HDMI 1.4a




Host Interface

•PCIe Gen2 x4



Input Features

•Support for input video resolutions up to 2048×2160 pixels



HDMI Specific Features

•225MHz HDMI receiver
•Adaptive HDMI equalizer support for cables lengths up to 30M
•Support for customized EDID
•Support for extraction of AVI/Audio/SPD/MS/VS/ACP/IRSC1/ISRC2/Gamut InfoFrames
•Full colorimetry support
•Support for 8/10/12-bit color depths
•Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
•Support for up to 8-channel IEC60958/IEC61937 audio streams
•Support for extraction of audio formation information & channel status data
•Support for extraction of video timing information
•Support for extraction of 3D format information
•Support for extraction of Sony/Canon DSLR time code
•Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode.



Video Capture Formats

•Support for capture image resolutions up to 2048×2160 pixels
•Support for capture frame rates up to 144fps. (Actual capture frame rate can be limited by PCIe bandwidth, and at higher image resolutions – above 1280×1024 – by the pixel clock of the on-board video processing hardware. eg. Max frame rate at 1920×1080 = ~80fps. )
•Support for 4:2:0 8-bit capture formats: NV12, I420, YV12
•Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
•Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
•Support for 4:4:4 10-bit capture formats: V410, Y410
•More capture formats are supported via Pro Capture SDK for DirectKS



Video Processing Features

•Two video processing pipelines with ~180Mpixels/s processing bandwidth for each one
•Full 10-bit video processing
•Video cropping
•Video scaling
•Video de-interlacing◦Weave
◦Blend top & bottom field
◦Top field only
◦Bottom field only

•Video aspect ratio conversion◦Auto or manual selection of input aspect ratio
◦Auto or manual selection of capture aspect ratio
◦Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)

•Video color format conversion◦Auto or manual selection of input color format & quantization range
◦Auto or manual selection of capture color format, quantization range & saturation range
◦Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
◦Support for Limited or Full quantization range
◦Support for Limited, Full & ‘Extended gamut’ saturation range

•Video frame rate conversion
•Video OSD composition◦Support for PNG OSD image (up to 2048×2160)
◦Support for dynamic loading of RGBA OSD image via SDK




Multiple Cards per System

•Support for multiple cards plugged to one system
•On-board rotary switch to set card number, with 16 positions from 0 to F
•System hardware device tree will display “01: Pro Capture AIO” when rotary switch is set to 1, and so on
•The video and audio device names displayed in your software will include the card number (set by the rotary switch)



Multiple Capture Streams

•Unlimited capture streams for any one input channel
•Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing and color adjustment settings for each individual stream



Ultra Low Latency Support

•Latency of 64 video lines
•Partial notification mode in SDK



Timestamp & A/V Synchronization

•Hardware based 100ns high resolution clock
•Audio frames (192 audio samples) & video frames are stamped with hardware clock
•Hardware clock can be synchronized across cards (via SDK)



Video Capture SG-DMA

•~400MB/s per channel DMA bandwidth in PCIe 2.0 system
•~200MB/s per channel DMA bandwidth in PCIe 1.0 system
•Support for auto detection of Intel tiled GPU surface
•Support for DirectGMA for AMD video adapter chipsets
•Support for GPUDirect for Nvidia video adapter chipsets



SDK

•Pro Capture SDK for DirectShow for easy integration (Windows)
•Pro Capture SDK for DirectKS for maximum flexibility & performance (Windows)



Windows Driver Tweaks

•All options can be controled by three levels of registry key: global level, product level and device level
•Video, Audio, Crossbar filter names can be customized via registry keys
