Streaming / PTZ Camera 's / MInrray UV401 NDI 4K PTZ

MInrray UV401 NDI 4K PTZ

MInrray UV401 NDI 4K PTZ MInrray UV401 NDI 4K PTZ MInrray UV401 NDI 4K PTZ MInrray UV401 NDI 4K PTZ
MInrray UV401 NDI 4K PTZ MInrray UV401 NDI 4K PTZ MInrray UV401 NDI 4K PTZ MInrray UV401 NDI 4K PTZ
MInrray UV401 NDI 4K PTZ
De UV401 4K PTZ camera met NDI en borstel loze motor voor geruisloze bediening en een fantastische kleurweergave.
€ 2.195,00
excl. btw
€ 2.655,95
incl. btw
Prijs per stuk
Plus- en minpunten:
product pro icon
4K resolutie met NDI
product pro icon
kristalhelder beeld met natuurlijke kleuren
product pro icon
Borstelloze motor
Aantal:
Bestellen

Op verlanglijst

Heeft u een vraag over dit product?

Stel ons uw vraag

Met geavanceerde NDI®|HX-technologie levert de UV401A-NDI-camera video van hoge kwaliteit met ultralage latentie en maakt hij rechtstreeks verbinding met een NDI®-netwerk, gebruikmakend van op NDI gebaseerde videoproductieworkflows zonder extra configuratie, waardoor de kosten en de insteltijd worden verminderd. Uitgerust met borstelloze gelijkstroommotor en 4K Ultra HD 1/2.5” CMOS-sensor die een kristalhelder beeld en natuurlijke kleurweergave levert. Dankzij de uitstekende videoprestaties en -kwaliteit kunt u elke scène gemakkelijk vastleggen.



KEY FEATURES

  • 1. Pan/tilt Feature
    Brushless DC motor
    Almost no noise under high speed rotation;

    Camera can return to original position quickly if it’s forced to move.



    2. 4Ultra HD

    1/2.5 inch high quality 4K SONY CMOS sensor; 8.51 megapixel, resolution is up to 4K (3840x2160) with frame rate up to 60fps.



    3. Optical Zoom Lens

    12X optical zoom lens, with 80.4° FOV without distortion.



    4. Trinity imagauto-focusing technology

    Focus on intelligent image processing, to provide automatic white balance (AWB), automatic exposure (AE), automatic focusing (AF) function, fully automatically adapt to the environment, to achieve the best image effect, perfect trinity image automatic adjustment.



    5. Low Noise and High SNR
    Low noise CMOS ensures super high SNR image. The advanced 2D/3D noise reduction technology reduces the noise while ensuring high image clarity.


    6. Multiple preset
    Up to 255 presets (10 presets for remote control).


    7. IR & Wireless Remote Control
    IR remote control (default)
    Wireless remote control (optional):
    2.4G wireless remote control is not affected by the angle, distance or infrared interference. Far-end-control is also available.



    Technical Specifications:



    Model

    UV401A

    Optical Zoom

    12X

    Focus

    f=3.85 mm~43.06 mm ±5%

    FOV

    Horizontal:7.59˚(tele)~80.4˚(wide)

    vertical:4.6˚(tele)~50.0˚(wide)

    Aperture

    F1.8~F3.56±5%

    Image Sensor

    1/2.5 Inch SONY CMOS Sensor

    Effective pixels

    8.51M; 16:9

    Video Format

    HDMI Video Output Format:

    4KP60, 4KP50, 4KP30, 4KP25, 1080P60, 1080P50, 1080i 60, 1080i 50,

    1080P30, 1080P25, 720P60, 720P50

    USB3.0 Video Output Format:

    YUY2/NV12:

    1920×1080P30, 1280×720P30,1024×576P30,

    960×540P30, 800×448P30, 640×360P30, 640×480P30, 320×176P30

    MJPEG/H.264:

    3840×2160P30,1920×1080P30,1280×720P30,1024×576P30,

    960×540P30, 800×448P30, 640×360P30, 640×480P30, 320×176P30

    USB3.0 compatible with USB2.0:

    YUY2/NV12: 640×360P30, 640×480P30, 320×176P30

    MJPEG/H.264: 3840×2160P30, 1920×1080P30, 1280×720P30, 1024×576P30,

    960×540P30, 800×448P30, 640×360P30, 640×480P30, 320×176P30

    Minimum Illumination

    0.05Lux (F1.8, AGC ON)

    DNR

    2D & 3D DNR

    White Balance

    Auto / Manual/ One Push/ Specified Color Temperature

    Focus

    Auto / Manual/ One Push

    exposure mode

    Auto/ Manual / Shutter Priority / Aperture Priority / Brightness priority

    Aperture

    F1.8~F11, CLOSE

    shutter speed

    1/25~1/10000

    BLC

    OFF/ON

    Dynamic range

    OFF/ Dynamic Level Adjustment

    Video Adjustment

    Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve

    SNR

    ≥50dB

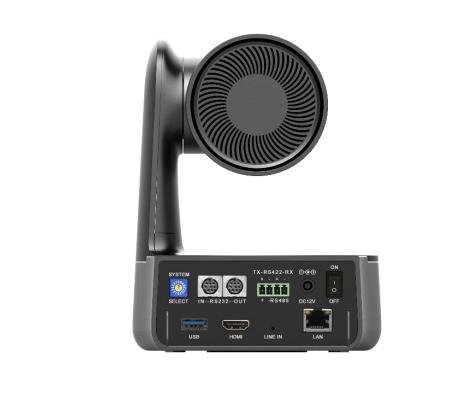

    Input/Output Interface

    Interfaces

    HDMI, LAN(POE), USB3.0(Type B, compatible with USB2.0), A-IN, RS232-in & out;

    RS422(Compatible with RS485), Dial switch, DC12V, Power Switch

    Video Compression

    Format

    LAN: H.264, H.265

    USB 3.0: MJPG, H264, YUY2, NV12

    Audio Input Interface

    Double track 3.5mm linear Input

    Audio out

    HDMI, LAN, USB3.0

    Audio Compression

    AAC, MP3, G.711A

    Network Interface

    10M/100M/1000M adaptive Ethernet port, support POE and audio/video output

    Network Protocol

    RTSP, RTMP, ONVIF, GB/T28181,,NDI, Network VISCA Control Protocols, Support Remote Upgrade, reboot and reset

    Control Interface

    RS232-IN, RS232-OUT, RS422 (Compatible with RS485)

    Serial Communication Protocol

    VISCA/ Pelco-D / Pelco-P; Baud rare: 115200/38400/9600/4800/2400

    USB Communication Protocol

    UVC(video),UAC(audio)

    Power

    HEC3800 outlet (DC12V)

    Power Adapter

    Input: AC110V-AC220V ; Output: DC12V/2.5A

    Input Voltage

    DC12V±10%

    Input Current

    <1A

    Power Consumption

    <12W

    PTZ Parameter

    Pan Rotation

    -170°ï½ž+170°

    Tilt Rotation

    -30°ï½ž+90°

    Pan Control Speed

    0.1°/s~120°/s

    Tilt Control Speed

    0.1°/s~80°/s

    Preset Speed

    Pan: 120°/s,Tilt: 80°/s

    Preset Number

    255 Presets (10 presets by remote control)

    Other Parameter

    Stored Temperature

    -10℃~+60℃

    Stored Humidity

    20%~95%

    Working Temperature

    -10℃~+50℃

    Working Humidity

    20%~80%

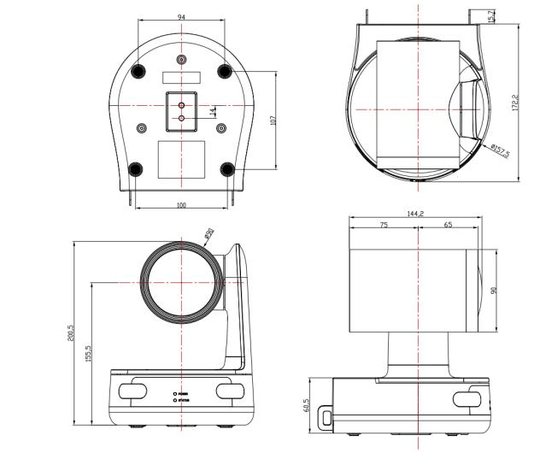

    Dimension

    157.5(L)mm×189mm(W)×201mm(H)

    Weight(around)

    2.60kg

    Application

    Indoor

    Accessory

    Package

    Power supply,RS232 control cable,USB3.0 connection cable, Remote controller, User Manual

    Optional Accessories

    Ceiling / Wall Mount (Extra Cost)
