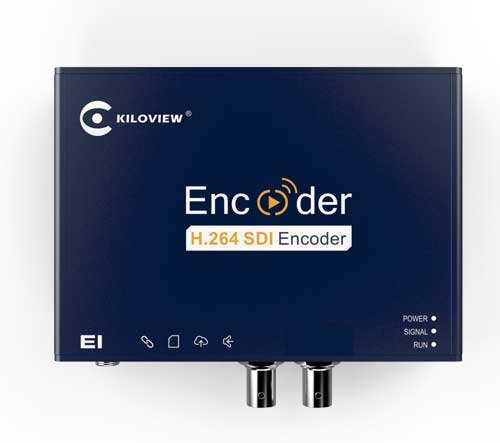

KILOVIEW E1- SDI

KILOVIEW E1- SDI KILOVIEW E1- SDI KILOVIEW E1- SDI KILOVIEW E1- SDI KILOVIEW E1- SDI
KILOVIEW E1- SDI KILOVIEW E1- SDI KILOVIEW E1- SDI KILOVIEW E1- SDI KILOVIEW E1- SDI
KILOVIEW E1- SDI
Kiloview E1 H.264 live video encoder delivers H.264 SDI video to various platforms like live broadcasts, Youtube Live, Facebook and live broadcast audio and video encoding for Ustream, Livestream, Twi

Standaard levertijd

op voorraad

€ 317,00
excl. btw
€ 383,57
incl. btw
Prijs per stuk
Aantal:
Bestellen

Op verlanglijst

Heeft u een vraag over dit product?

Stel ons uw vraag







Stable Video Encoder for Live Streaming

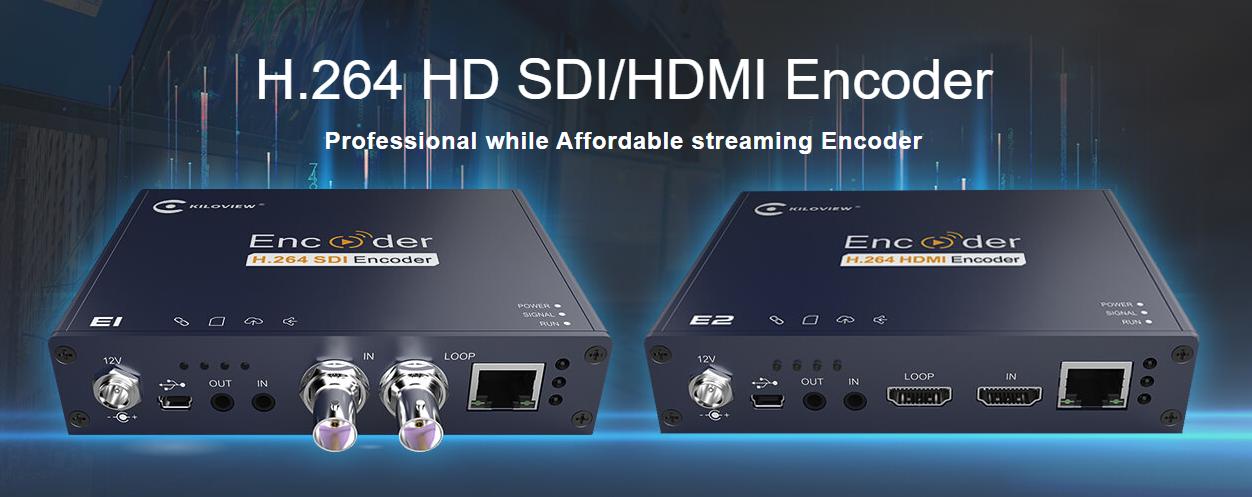

Kiloview E series wired hardware video encoder converts SDI/HDMI base-band video to H.264 IP streams, to achieve remote video transmission or live across internet WAN or over local network LAN. They support the most common protocols including SRT, RTMP, RTMPS, RTP, HLS, UDP, RTSP, Onvif, and are widely applied to professional live production, streaming, broadcasting, etc.

E1: SDI Input/Loop;
E2: HDMI Input/Loop






Low Latency, High-Quality Streaming

E series adopt standard H.264 coding algorithm, so they ensure high-quality image and smooth live streaming. They provide you superior video with low-latency, low bitrate and low bandwidth





It’s a recorder and an interphone!



Recording prepares for future. Kiloview E series provides simultaneous recording while you are doing live streaming to many media destinations. And redundant recording is realized with Micro SD/TF/USB/NAS with recording files in the format of .ts, .mp4, .mov,.mkv, avi.

It also supports SDI/HDMI embedded and 3.5mm analog audio coding, so you can use KILOVIEW voice intercom software to realize real-time voice intercom.





All IP Video Protocols Supported


E series supports full range of protocols including RTSP/ RTMP/ RTMPS/ SRT/ HLS/ TS-UDP/ Onvif, that means live stream with RTMP/RTMPS, while remote production with SRT, all can be handled at the same time. It also supports ONVIF 1.1/2.0 for easy Access To Security Protection System / NVR System





Encoding & Streaming to Multiple Platforms

You can set dual stream output (main stream and sub stream) in the built-in web console. Each stream can be used to up to 8 platforms with the same or different protocols, altogether it can simultaneously live stream to up to 16 platforms. Main stream resolution up to 1080p60Hz, sub stream resolution up to 720p 60Hz.

Let’s go Social


With FPGA processing unit, it can easily realize the functions of rotating and cropping for vertical/horizontal video which makes it social media friendly.



LOGO/ Image/ Text Overlay

Add any self-defined text, time and image overlay at any position to announce your copyrights and have fun!











Parameters

Model E1(SDI)/E2(HDMI)
Video input E1: 1*BNC 3G-SDI; E2: 1*HDMI
Analog audio interface 2*3.5mm
USB interface 2*USB 2.0 Type-A
Micro SD 1*Micro SD/TF card storage interface
Network support Wired/Satellite
Video loop E1: 1*BNC 3G-SDI; E2:1*HDMI
Video resolution Up to 1080P60Hz:
SDI: 1080P23.98/24/25/29.97/30Hz;1080P50/59.94/60Hz;
1080i50/59.94/60Hz;720P23.98/24/25/29.97/30Hz;720P50/59.94/60Hz
HDMI: 1080P23.98/24/25/29.97/30Hz;1080P50/59.94/60Hz;
1080i50/59.94/60Hz;720P30/50/59.94/60Hz; below 1920*1200.
Video encoding H.264/AVC, Motion-JPEG
Audio encoding AAC/G.711
Encoding latency <67ms
Media transmission protocols SRT/RTMP/RTP/RTMPS/HLS/TS over UDP/RTSP
Image and text overlay Support
Record storage Micro SD/TF card local recording, and NAS network storage
Management APP/ Web
Power supply/consumption DC 12V 1A/4W
Operation temperature -20℃~60℃
Dimension 125*89*28mm (4.92”*3.50”*1.10”)
Weight 380g (13.4oz)

encoder eigenschappen
Video input HD/3G-SDI Video loopout HD/3G-SDI Analog audio input 3.5mm Analog audio output 3.5mm USB interface 2*USB 2.0 Type-A; 1*USB 2.0 Mini-USB Micro SD Micro SD/TF Card Video resolution 1080p23.98/24/25/29.97/30Hz 1080p50/59.94/60Hz 1080i50/59.94/60Hz 720p23.98/24/25/29.97/30Hz 720p50/59.94/60Hz, 576i, 480i 720*480(NTSC),720*576(PAL) Transmission mode Wired/Ethernet Video Encoding H.264/AVC High profile Audio encoding AAC/G.711 Encoding latency ≤67ms Streaming media protocols RTMP/RTMPS/HLS/TS over UDP/RTP/RTSP SRT Management Android App or Web Power DC 12V 1A Operating temperature -4°F to 160°F /-20℃ to 6℃ Dimensions 4.9 x 3.5 x 1.125″/125*89*28mm Weight 13.4oz /380g
